Our 12” x 12” and 15” x 15” Ground Supported Tower Systems are the right choice for your outdoor support structures, as well indoor applications when venue rigging points are unusable or unavailable. Each tower system is capable of supporting a wide range of JTE truss products and roof systems.
Every system comes with 4 screw jack assemblies on the tower base with 6“ diameter adjustable foot pads for leveling the tower. The base also features 4 ball casters to accurately position the entire rig before raising the tower. The specially designed hinge section allows for the tower system to be assembled horizontally at truss top level before being swung and locked in the vertical operating position.

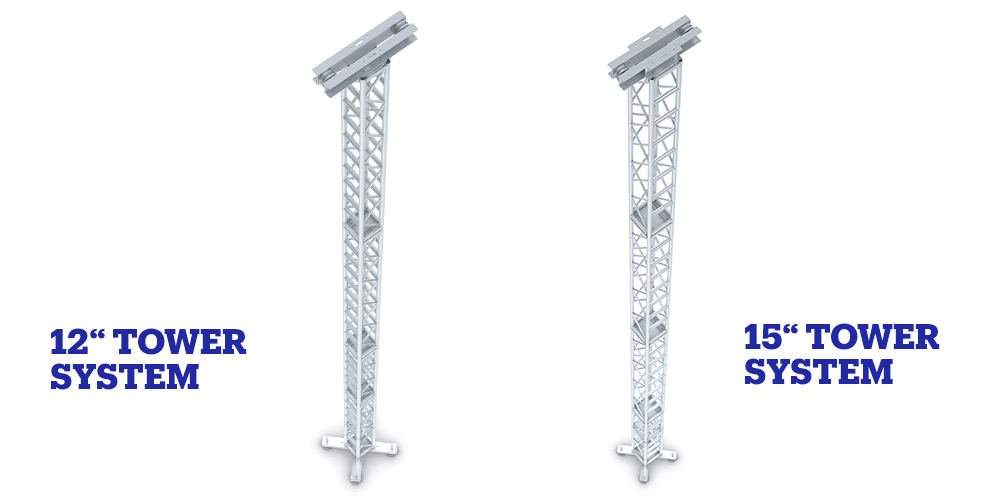

12” x 12” Square Ground Support Tower
Designed to provide a lifting medium for a variety of JTE truss ranging from 12“ x 12“ to heavy-duty truss.
- 2 tons max. loading (including self-weight of truss rig and motors)
- Up to 33’ high
- 2“ dia x .157“ wall main chords with 1“ dia x .125“ wall diagonals
- Roller beam on tower top
- Sleeve block with sixteen, heavy duty, 4“ wheels
15” x 15” Square Ground Support Tower
Designed to provide a lifting medium for a variety of JTE truss from 20.5“ x 20.5“, Heavy-duty, SuperTruss, and Pre-rig truss to Roof systems.
- 4 tons max. loading (including self-weight of truss rig and motors)
- Up to 40’ high (Tower sections bolted together to allow 30“ adjustments in height)
- 2“ dia x .157“ wall main chords with 1“ dia x .125“ wall diagonals
- Roller beam on tower top
- Sleeve block with sixteen, heavy duty, 4“ wheels
Read more about our Tower Systems here.
